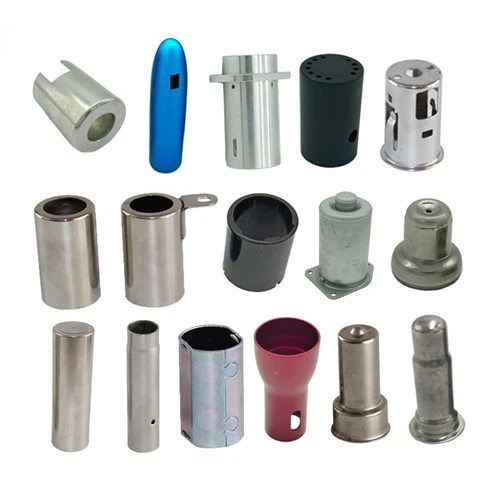

Cost Reduction Strategies for Deep-Drawn Parts
For deep-drawn parts, cost reduction has some very specific levers compared to general stamping. This process is highly sensitive to geometry, material flow, and tooling, so small changes can make a big difference.
Here's how you can target cost savings more precisely:
1. Optimize Part Geometry (Biggest Impact)
Control drawing depth-to-diameter ratio
If the draw is too deep, you'll need multiple draws → more cost.
👉 Try to keep it within a reasonable draw ratio to enable fewer stages.
Increase corner radii
Sharp radii increase risk of cracking and tool wear.
👉 Larger radii = smoother material flow + longer die life.
Avoid unnecessary features
Side holes, embossing, or steps added after drawing = extra operations.
👉 Integrate features where possible or simplify them.
2. Reduce Number of Drawing Operations
Use better draw ratios + intermediate annealing only if necessary
Optimize blank holder force and lubrication to allow deeper draws in fewer steps
👉 Every eliminated draw stage saves tooling, time, and handling cost.
3. Improve Material Utilization
Optimize blank size
Oversized blanks waste material; undersized blanks cause defects.
Use simulation (or experience-based calculation) to find the minimum safe blank diameter
Consider tailored blanks if geometry allows
4. Control Material Selection
Use materials with good formability (e.g., low carbon steel, certain aluminum alloys)
Avoid over-specifying thickness or grade
👉 Thinner or more formable material can reduce both force and number of operations
5. Tooling Strategy
Use progressive deep drawing dies for high-volume parts
Apply coatings (e.g., TiN, DLC) to reduce wear and friction
Design replaceable wear inserts in critical مناطق (like radii)
👉 Deep drawing dies are expensive-extending life is a major cost saver.
6. Lubrication & Process Stability
Proper lubrication reduces:
Friction
Risk of tearing
Tool wear
Stable process = fewer rejects and less downtime
7. Minimize Secondary Operations
Reduce trimming, ironing, piercing, or reshaping steps
Combine operations when possible
👉 Secondary ops often hide a lot of "invisible" cost.
8. Reduce Defects (Huge Hidden Cost)
Focus on eliminating:
Wrinkling → optimize blank holder force
Tearing/cracking → improve radii, lubrication
Springback (less critical than in bending, but still relevant)
👉 Scrap in deep drawing is especially expensive due to material + process time.
Practical Rule of Thumb
For deep-drawn parts, cost is heavily driven by:
Number of drawing stages
Material usage (blank size)
Tool life and maintenance
Scrap rate
